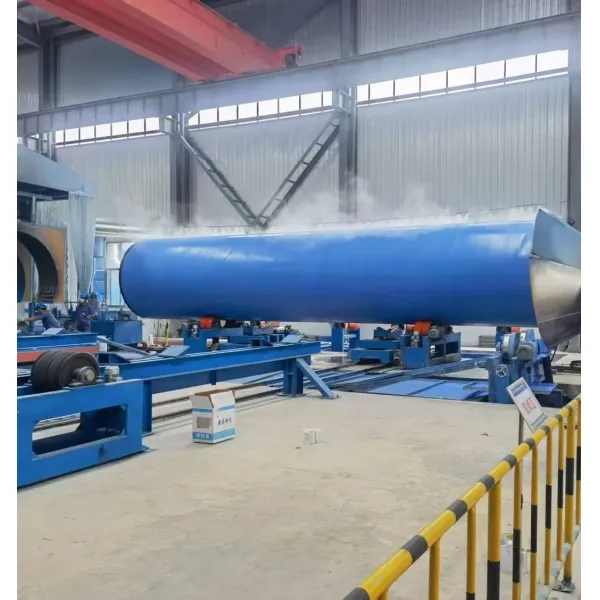

FBE Coating Line for Internal and External Steel Pipelines
Product Overview
Fusion Bonded Epoxy (FBE) Coating Line provides an efficient method for applying epoxy powder to both the interior and exterior surfaces of steel pipes for superior anti-corrosion protection.
Anti-corrosive steel pipes offer numerous advantages including strong corrosion resistance that withstands various chemical media, smooth coating surfaces with minimal friction resistance, and wide application across petroleum, natural gas transmission pipelines, water supply, drainage systems, and other critical fields.
Customized production capabilities allow for manufacturing products according to specific customer specifications. Huashida's steel pipe internal and external epoxy coating anti-corrosion equipment utilizes high-precision metering spraying technology to ensure uniform coverage on both inner and outer pipe walls, enhancing anti-corrosion performance and extending service life. The system features PLC automatic control to minimize human error and ensure stable production.
Coating Structure & Technology
Internal & External FBE Coating Structure: Epoxy powder is a thermosetting, non-toxic coating that forms a high-molecular-weight cross-linked coating after curing, providing excellent chemical corrosion resistance and high mechanical properties. The epoxy powder primer creates a continuous coating with superior adhesion to steel pipe surfaces through bonding and curing, demonstrating exceptional chemical resistance and cathodic disbondment resistance.
Production Line Advantages
- Internal powder coating line features electrostatic spraying system to prevent pinholes in internal coating caused by spray gun discharge
- Comprehensive dust collection system with multi-point environmental control coverage
- External powder coating line utilizes closed-loop powder circulation system for improved recovery rate and cleanliness
- Dust collection system with optimized airflow design and highly efficient, low-noise, environmentally friendly filter cartridges
Technical Specifications
| Item | Process Flow |
|---|
| 1 | Upload pipes |
| 2 | Pipes spiral conveyor |
| 3 | External blasting |
| 4 | Internal blasting |
| 5 | Rust removal |
| 6 | Intermediate frequency heating |
| 7 | FBE powder coating |
| 8 | Powder recycling system |
| 9 | Load down pipe rack |
Extended Capabilities: We also manufacture External 3LPE internal and FEB powder coating lines for comprehensive anti-corrosion solutions.
Our Competitive Advantages
- Advanced Technology & Stable Performance: Ensuring highly efficient and reliable operation
- High Automation: Significantly reduces labor costs and improves production efficiency
- Internationally Certified Quality: Superior anti-corrosion properties meeting global standards
- Turnkey Solutions: Comprehensive service from design and installation to commissioning and training
- Proven Expertise: Backed by 389 successful production lines worldwide and a team of 9 senior engineers
- Award-Winning Innovation: Recognized by a national-level expert workstation in China
Company Profile
Qingdao Huashida Machinery Co., LTD is a manufacturer with over 20 years of production experience specializing in plastic pipe machines, municipal pipe machines, pipe insulation & anti-corrosion machines, and pipe jointing & anti-corrosion materials.
We maintain strong commitment to research and development, collaborating with Tsinghua University, Beijing University of Chemical Technology, South China University of Technology, and other scientific research institutions. By integrating advanced domestic and international technologies, we rank among the top 3 manufacturers in China's industry.
Our global reach includes partnerships with over 400 overseas customers and exports to Kazakhstan, Uzbekistan, Middle East, Russia, Nigeria, and numerous other countries.
Our Main Products
- HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
- Rigid pre-insulated pipe Production Line
- Flexible pre-insulated pipe (PERT) production line
- Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
- Steel pipe derusting line
- PE pressure pipe/Water Gas supply pipe production line
- PP/PE plastic board/sheet/geomembrane production line
- NBR PVC Thermal insulation tube/plate production line
- Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod
International Presence
Quality Certifications
Client Projects
Our Expert Team

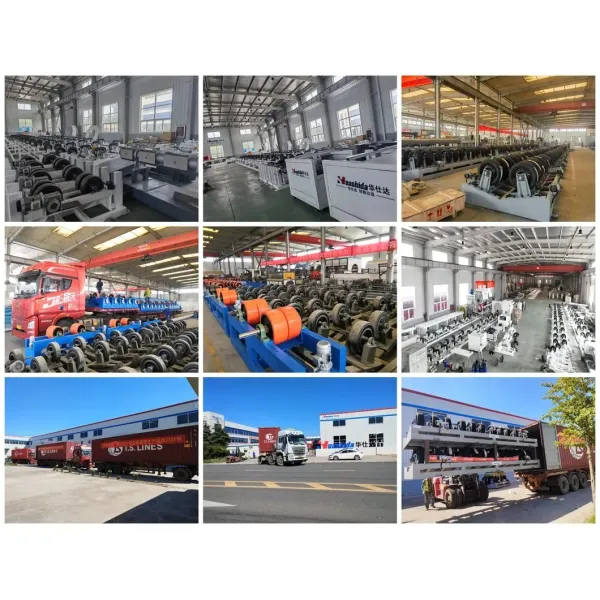

Global Shipping & Transportation
